Four main categories of cable bridge

電纜橋架分為四大類：梯級式電纜橋架、托盤式電纜橋架、槽式電纜橋架、大跨距電纜橋架

Cable bridge is divided into four categories: cascade cable bridge, pallet cable bridge, slot cable bridge, long-span cable bridge

1、梯級式電纜橋架

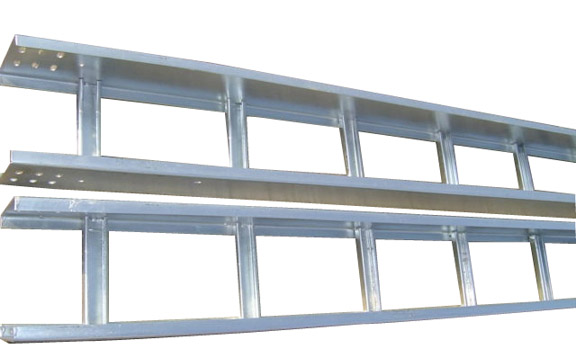

1. Cascaded cable tray

CQ1-T型梯級式電纜橋架是依據國內外有關材料而改善規劃的。它具有重量輕、成本低、造型別具、裝置便利、散熱、透氣好等長處。他適用于一般直徑較大電纜的敷設，適合于高、低壓動力電纜的敷設。

The CQ1-T cascaded cable tray is based on the relevant materials at home and abroad to improve the planning. It has the advantages of light weight, low cost, styling, convenient installation, heat dissipation and good ventilation. It is suitable for laying of large diameter cables and suitable for laying of high and low voltage power cables.

2、托盤式電纜橋架

2. Tray type cable tray

托盤式電纜橋架是石油、化工、輕工、電訊等方面使用廣泛的一種。它具有重量輕、載荷大、造型美

Tray type cable tray is the most widely used in petroleum, chemical industry, light industry, telecommunications and so on. It has light weight, large load and beautiful shape.

電纜橋架(20張)觀、結構簡略、裝置便利等長處。它即適用于動力電纜的裝置，也適合于操控電纜的敷設。

Cable bridge (20 pieces) concept, simple structure, convenient installation and other advantages. It is suitable for the installation of power cables and the laying of control cables.

3、槽式電纜橋架

3, trough cable tray

槽式電纜橋架是一種全封閉型電纜橋架。它適用于敷規劃算機電纜、通訊電纜、熱電偶電纜及其他高活絡體系的操控電纜等。它對操控電纜的屏蔽攪擾和重腐蝕中環境電纜的防護都有較好的作用。

The trough cable tray is a fully enclosed cable tray. It is most suitable for laying computer cables, communication cables, thermocouple cables and other high active control cables. It plays a good role in controlling the shielding and disturbing of cables and protecting the environment cables in heavy corrosion.

4、大跨距電纜橋架

4. Long span cable bridge

梯級式匯線橋架具有良好的通風功能，不防塵、不防攪擾。槽式、托盤式匯線橋架具有防塵。

The cascade type bridge has good ventilation function, no dust-proof and no disturbance. The trench and pallet type transmission line bridge has dust-proof.
