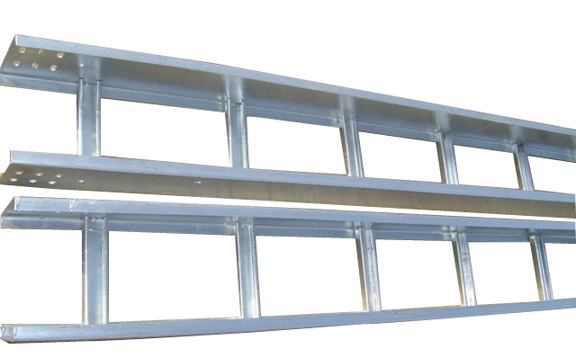

Cable bridge is almost everywhere, the wiring above the construction site will be used, the length of the routine is 2 meters long. We can see these things when we look up in the underground parking lot, where the wires and cables are placed. In engineering construction, there are many wires and cables to be pulled from one place to another, then the cable bridge will be used at this time.

電纜橋架是用來敷設電纜的，一般規格在200mm寬*100mm高及以上稱為橋架。原材料都是鍍鋅鋼鐵，在鋼鐵表面鍍了一層鋅，做一個簡單的防銹放腐蝕處理。但是這種鍍鋅遇水過不了多久就會發白，長期遇水就會生銹，所以還是室內用切記不可戶外用。戶外用的話要將電纜橋架拿去在做一次熱浸鋅（熱鍍鋅）表面處理，也就是購買“ 熱鍍鋅電纜橋架”，鍍鋅層要達到67um以上才可以?；蛘吒臑?不銹鋼電纜橋架和 鋁合金電纜橋架。電纜橋架也可以在表面噴涂，噴涂具有一定的防水防腐蝕能力，也可以噴各種顏色，比較美觀。

Cable bridge is used for laying cables. The general specification is 200 mm wide * 100 mm high or above, which is called bridge. The raw materials are galvanized steel. The surface of the steel is coated with zinc to make a simple anti-rust and anti-corrosion treatment. But this kind of galvanizing will turn white soon when it meets water, and rust when it meets water for a long time, so it's important to remember that it can't be used outdoors for indoor use. For outdoor use, the cable bridge frame should be removed for a hot dip galvanizing (hot dip galvanizing) surface treatment, that is, to buy "hot dip galvanizing cable bridge", galvanized layer to reach 67 um or more. Or it can be replaced by stainless steel cable tray and aluminum alloy cable tray. Cable bridge can also be sprayed on the surface, spraying has a certain waterproof and anti-corrosion ability, can also be sprayed in various colors, more beautiful.

電纜橋架安裝步驟一：將兩根線槽端對端，放在一起擺好。拿好螺絲和連接片。注意戴手套。

The first step of cable bridge installation is to put the ends of two cable grooves on the opposite end and put them together. Hold the screw and connector. Take care to wear gloves.

電纜橋架安裝步驟二：將連接片對齊線槽上面的孔，小規格線槽只有一排孔，安裝很簡單，我徒手示范一下，大家安裝的時候要戴手套，免得刮傷。

Step 2: Align the connecting piece to the hole on the groove. The small size groove has only one row of holes. The installation is very simple. I'll show you by hand that when you install it, you should wear gloves to avoid scratches.

電纜橋架安裝步驟三：將螺絲放到孔里面擰上去就可以，擰緊一點。要使用扳手!

Installation step 3: Put the screw in the hole and screw it up, tighten it a little. Use a wrench!

這里需要注意：螺絲一定是要從內到外安裝，不可以從外到內安裝，如果從外到內安裝，在穿電纜線的時候，會對電纜線造成損壞和磨損。

Here we need to pay attention to: the screw must be installed from inside to outside, not from outside to inside. If installed from outside to inside, the cable will be damaged and worn when crossing the cable.

好了，就這么簡單，這個一般是安裝在天花板上吊起來?？罩邪惭b注意防范措施，安全。

Well, it's that simple. It's usually mounted on the ceiling and hung up. Attention should be paid to preventive measures in air installation, safety first.

電纜橋架安裝注意事項

Cautions for Installation of Cable Bridge Frame

1.電纜橋架安裝要確定方向，方向要從建筑布置、電器管線、空調管線和后續維護方便等因素考慮。并且要盡量沿著建筑墻、房梁、柱子等物體架設。

1. The orientation of cable bridge erection should be determined firstly. The orientation should be considered from building layout, electrical pipeline, air conditioning pipeline and easy maintenance. And try to erect along building walls, beams, columns and other objects.

2.電纜橋架要承載電纜線，所以在設計時要考慮到電纜的重量，看看電纜橋架能不能承受這個重量，支架的安裝也要根據承重來設計。

2. Cable bridge should bear cable, so the weight of cable should be taken into account in the design to see if the cable bridge can bear this weight, and the installation of the bracket should also be designed according to the load.

3.橋架的寬度要能將全部電纜放進去，所以寬度應該從電纜直徑、電纜數量、電纜間距等數據綜合考慮。

3. The width of the bridge should be able to put all the cables in it, so the width should be considered comprehensively from the cable diameter, the number of cables, the distance between cables and other data.

4.根據安裝場所設計電纜橋架的安裝方式。安裝方式有懸吊式、側壁式、直立式還有混合式，哪種方法合適就可以用哪種方法來安裝，并沒有統一的規定。

4. Design the installation mode of cable bridge according to the installation site. Installation methods include suspension type, side wall type, vertical type and hybrid type, which method is the most suitable can be installed with which method, there is no uniform regulation.

好了，今天的精彩內容就給大家介紹到這里了，如果大家還有疑問歡迎咨詢山東電纜橋架的官網客服人員：http://m.xinheli88.com

Well, today's wonderful content is introduced here. If you have any questions, please consult the official customer service staff of Shandong Cable Bridge Frame: http://m.xinheli88.com.
